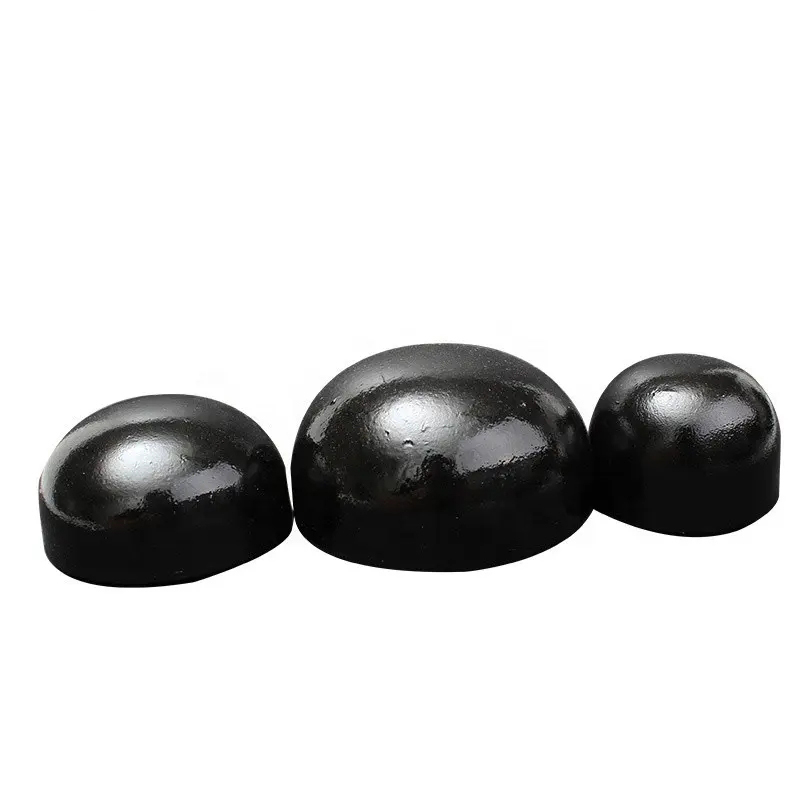

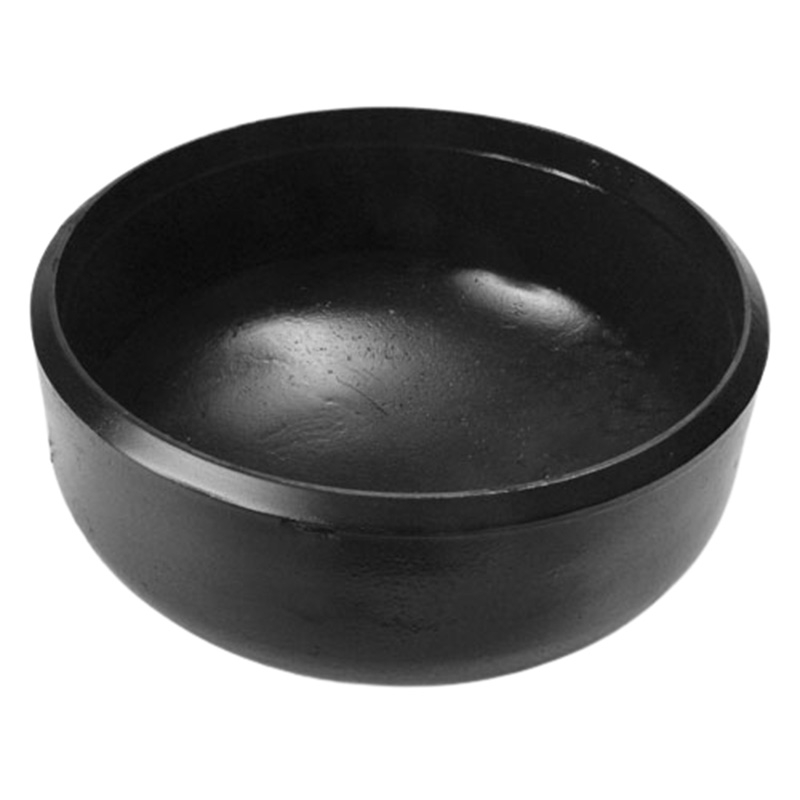

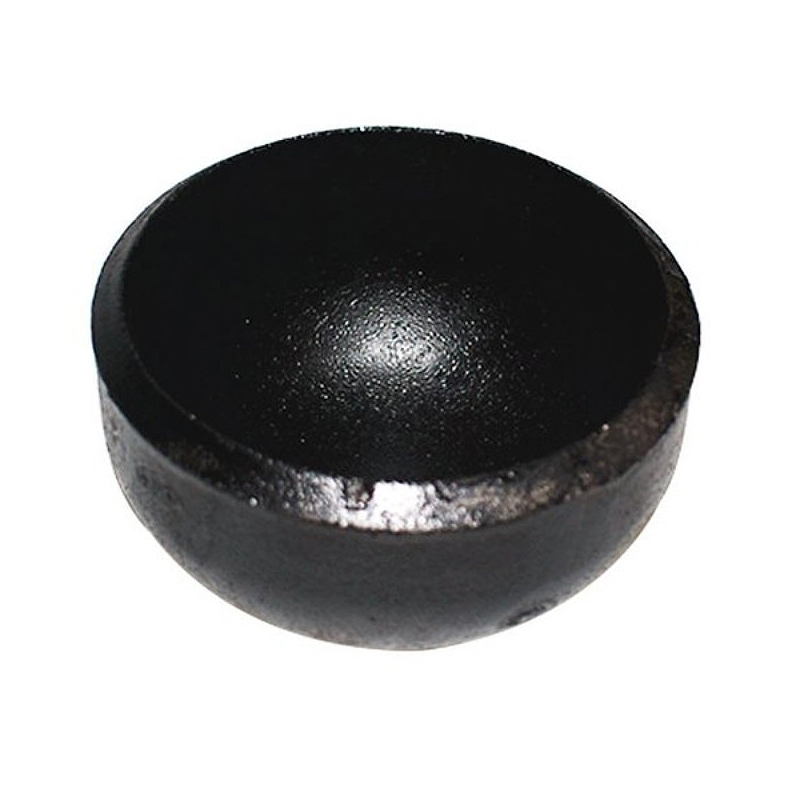

| Welded Pipe Cap Fittings
Carbon steel welded pipe caps, also known as pipe plugs, pipe caps, pipe covers, mufflers, are used to close the pipeline, the role is the same as the pipe plugs, but the caps can be screwed directly onto the pipeline without other accessories. Pipe caps include convex caps, conical shells, reducer segments, flat caps and tight port designs. They serve the same purpose as pipe plugs, effectively closing off the pipeline. The pipe end cap, depending on the material, can be made of carbon steel, stainless steel, alloy steel, or other materials. It is designed to effectively seal the pipe, just like pipe plugs.
| Advantage
Wide Application
Currently in the market, there isawide range of pipe caps which are widely used in the petrochemical, nuclearmedical eauipment, shipbuilding, wastewater treatment and pipeline industries. The use of welded pipe caps inengineering projects not only improves the sealing of pipes, but also enhances worker safety.
Superior Sealing Performance
Butt-welded stainless steel end caps are fittings welded to the end of a steel pipe to cover the pipe. The weldedstructure has high stifness and good integrity. At the same time, it is easy to ensure gas and water tightness, so itis particularly suitable for the manufacture of high-strength and high-stiffness hollow structures, such as pressurevessels and pipelines.
High-quality manufacturing
Butt-welding technology facilitates the welded assembly of plates, profiles or castings and is thereforeimportant for the manufacture of large and very large structures such as bridges, ships and rockets. lt is alsopossible to join different shapes, sizes and even materials using welding processes, thereby reducing weight, savingmaterials and optimizing resources.
| Size
| GB/T 12459、GB/T 13401、ASME B16.9 | |||||
| Nominal Size | Outside Diameter at Bevel | Length | Limiting Wall Thickness for Length E | ||
| DN | NPS | OD | E | E1 | |
| 15 20 25 | 1/2 3/4 1 | 21.3 26.7 33.4 | 25 25 38 | 25 25 38 | 4.57 3.81 4.57 |
| 32 40 50 | 1 1/4 1 1/2 2 | 42.2 48.3 60.3 | 38 38 38 | 38 38 44 | 4.83 5.08 5.59 |
| 65 80 90 100 | 2 1/2 3 3 1/2 4 | 73.0 88.9 101.6 114.3 | 38 51 64 64 | 51 64 76 76 | 7.11 7.62 8.13 8.64 |
| 125 150 200 | 5 6 8 | 141.3 168.3 219.1 | 76 89 102 | 89 102 127 | 9.65 10.92 12.70 |
| 250 300 350 | 10 12 14 | 273.0 323.8 355.6 | 127 152 165 | 152 178 191 | 12.70 12.70 12.70 |
| 400 450 500 | 16 18 20 | 406.4 457.0 508.0 | 178 203 229 | 203 229 254 | 12.70 12.70 12.70 |
| 550 600 650 | 22 24 26 | 559.0 610.0 660.0 | 254 267 267 | 254 305 | 12.70 12.70 |
| 700 750 800 | 28 30 32 | 711.0 762.0 813.0 | 267 267 267 | ||
| 850 900 950 | 34 36 38 | 864.0 914.0 965.0 | 267 267 305 | ||
| 1000 1050 1100 | 40 42 44 | 1016.0 1067.0 1118.0 | 305 305 343 | ||
| 1150 1200 | 46 48 | 1168.0 1219.0 | 343 343 | ||
| Pipe cap parameter table
| Factory Shoot
| Q & A
Q: What are carbon steel pipe caps used for?
A: Carbon steel pipe caps, also known as pipe plugs or pipe covers, are used to close off pipelines.
Q: How do carbon steel pipe caps differ from pipe plugs?
A: While the role of carbon steel pipe caps is the same as pipe plugs, the caps can be directly screwed onto the pipeline without the need for additional accessories.
Q: What are the different designs of carbon steel pipe caps?
A: Carbon steel pipe caps come in various designs, including convex caps, conical shells, reducer segments, flat caps, and tight port designs. These designs cater to different pipeline requirements and ensure effective closure.
